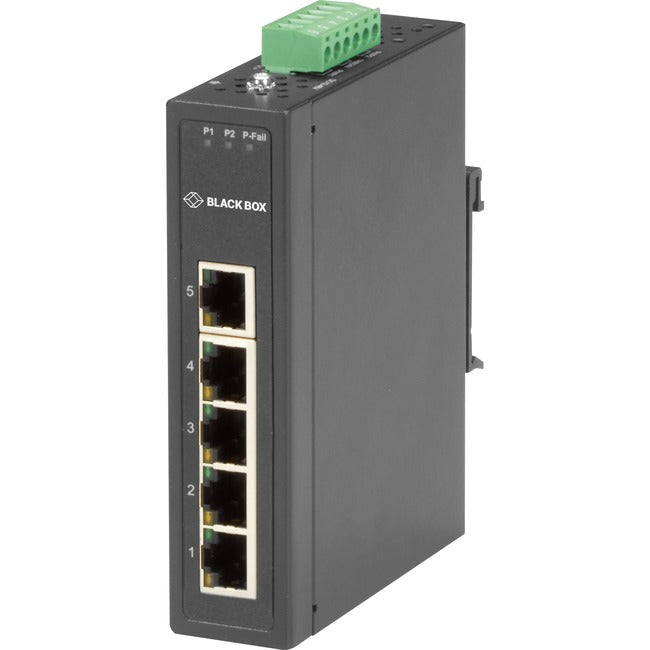

Black Box Industrial 10/100-Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 5-Port

Unlike the Ethernet switches in your wiring closet or computer center, the switches at the edges of your network have to withstand extreme temperatures and conditions. This is where the Industrial 10-/100-Mbps Ethernet Switch from Black Box comes in. It's built to withstand extreme temperatures of -40 to 75°C. An IP30 metal housing protects against dust and dirt.

Ideal for use in harsh environments, the switch is ideal for:

• Security/surveillance to backhaul IP camera data
• Building automation and HVAC control
• M2M communications with remote stations in oil/gas facilities
• Communications networks for defense and military applications
• Factory automation and machine control

Redundant power

The switch features 12-48 VDC redundant power, which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents.

Alarm alerts

Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which, in the event of a power failure, will activate the alarm to notify administrators.

Easy to set up

The switch is literally plug-and-play. All ports are autosensing for speed and duplex, adjusting to the connected device automatically. They also feature Auto MDI/MDI-X, eliminating the need for crossover cables.

• Mounts on a DIN rail or the wall.
• Includes panel mount kit.
• Features broadcast storm protection.
• Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories.
• Supports redundant 12-48 VDC input power and a P-Fail relay.
• Withstands extreme temperatures between -40 and +167� F (-40 to +75� C) and has an IP 30 enclosure.
• Features four 10/100-Mbps switch ports and one 10/100/100-Mbps uplink port.
